Single compressor

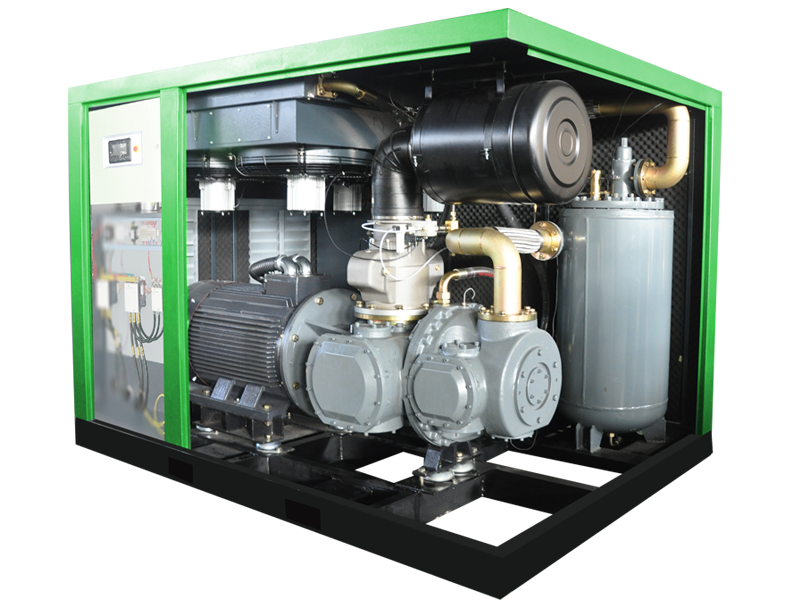

Single screw medium pressure air compressor

Product description：The single screw medium pressure compressor is mainly composed of a six - head screw and two eleven - tooth star wheel and the body. Simple structure, small volume, weight less than 1/6 of the piston. Screw round 12 times of suction and exhaust. When the screw is running at high speed, the air pulsation is small and the air displacement is large.

Hotline: +86 400 097 9158

Online consulting

Product parameters

Parameters of main types of single-screw medium compressor (air-cooled type) :

（风冷式）
型号

容积流量压力
(M3/min)(Mpa)

电动机

气体含油量
(PPM)

外形尺寸

接口管径
（inch）

重量（kg）

噪音
db(A)

转速 (r/min)

启动
方式

功率
（KW)

电压防护等级

长
(mm)

宽
(mm)

高
(mm)

FHOGZ-7.5F

0.6/2.5

0.68/2.0

0.8/1.6

2930

7.5

380v
/50HZ IP54

≤2

550

950

3/4"

400

72±2

FHOGZ-11F

0.8/2.5

0.9/2.0

1.1/1.6

Y-△

启动
(6KV、
10KV
直接
启动)

550

950

3/4"

400

72±2

FHOGZ-15F

1.25/2.5

1.36/2.0

1.5/1.6

550

950

3/4"

400

75±2

FHOGZ-18.5F

1.5/2.5

1.67/2.0

1.85/1.6

18.5

550

950

1275

3/4"

465

75±2

FHOGZ-22F

1.8/2.5

1.9/2.0

2.2/1.6

2950

1350

800

1100

1-1/4"

520

75±2

FHOGZ-30F

2.4/2.5

2.7/2.0

3.0/1.6

1350

800

1100

1-1/4"

560

78±2

FHOGZ-37F

3.0/2.5

3.3/2.0

3.7/1.6

1350

800

1100

1-1/4"

650

78±2

FHOGZ-45F

3.7/2.5

4.0/2.0

4.5/1.6

2970

1500

1100

1250

1-1/4"

850

78±2

FHOGZ-55F

4.5/2.5

5.0/2.0

5.5/1.6

1500

1100

1250

1-1/4"

880

80±2

FHOGZ-75F

6.0/2.5

6.8/2.0

7.6/1.6

1720

1100

1400

1-1/4"

2030

82±2

FHOGZ-90F

7.3/2.5

8.1/2.0

9.0/1.6

1950

1300

1520

2400

82±2

Parameters of main types of single-screw medium press (water-cooled) :

（水冷式）
型号

容积流量压力
(M3/min)(Mpa)

电动机

气体含油量
(PPM)

外形尺寸

接口管径
（inch）

重量（kg）

噪音
db(A)

冷却水量

进出口水压差(Mpa)

水管外接管径(inch)

转速 (r/min)

功率
（KW）

启动
方式

防护等级

长
(mm)

宽
(mm)

高
(mm)

FHOGZ-110

9.0/2.5

10.0/2.0

11.0/1.6

2980

110

Y-△
启动
(6KV、
10KV
直接
启动)

380V/IP54

≤2

2100

1300

1620

3100

85±2

≥0.18
~0.20

FHOGZ-132

10.7/2.5

11.9/2.0

13.2/1.6

132

2200

1450

1560

3250

85±2

FHOGZ-160

13.0/2.5

14.4/2.0

16.0/1.6

160

2200

1450

1560

DN65

3250

86±2

FHOGZ-185

15.1/2.5

16.7/2.0

18.5/1.6

185

2200

1450

1560

DN65

3250

86±2

FHOGZ-200

16.3/2.5

18.0/2.0

20.1/1.6

200

2400

1650

1780

DN65

3600

86±2

FHOGZ-220

17.9/2.5

19.8/2.0

22.1/1.6

220

2400

1650

1780

DN65

3600

88±2

FHOGZ-250

20.4/2.5

22.5/2.0

25.1/1.6

250

2400

1650

1780

DN65

3600

88±2

FHOGZ-280

22.9/2.5

25.2/2.0

28.1/1.6

280

6～10KV/IP23

2400

1650

1780

DN80

3600

88±2

FHOGZ-315

25.7/2.5

28.4/2.0

31.6/1.6

315

2850

1760

1920

DN80

4150

92±2

FHOGZ-355

28.8/2.5

32.0/2.0

35.6/1.6

355

2850

1760

1920

DN80

4150

92±2

FHOGZ-400

32.7/2.5

36.0/2.0

40.1/1.6

400

3000

2140

2250

DN100

4650

92±2
